Gasoline


Here, I've listed a few precautionary measures to take to mind!

HAVE FIRE EXTINGUISHER AND FIRE BLANKET IN YOUR VICINITY

PLACE THE VEHICLE IN A QUARANTINED AREA AND ARRANGE 'NO SMOKING/PETROL FUMES' SIGNS ABOUT THE VEHICLE.

BEFORE ANY WORK IS CARRIED OUT ON THE FUEL SYSTEM, GROUND THE VEHICLE TO EARTH AND MAINTAIN THE GROUND CONNECTION UNTIL THE WORK IS COMPLETED

DO NOT SMOKE OR CARRY LIGHTED TOBACCO OR OPEN FLAME, SPARKS OF ANY TYPE WHEN WORKING ON OR NEAR ANY FUEL RELATED COMPONENTS. HIGHLY FLAMMABLE VAPOURS ARE ALWAYS PRESENT AND MAY IGNITE.

THE FUEL SYSTEM REMAINS PRESSURIZED FOR A LONG TIME AFTER THE IGNITION IS SWITCHED OFF. THE FUEL PRESSURE MUST BE RELIEVED BEFORE ATTEMPTING ANY REPAIRS.

AFTER CARRYING OUT REPAIRS, THE FUEL SYSTEM MUST BE CHECKED VISUALLY FOR LEAKS.

THIS PROCEDURE INVOLVES FUEL HANDLING. BE PREPARED FOR FUEL SPILLAGE AT ALL TIMES AND ALWAYS OBSERVE FUEL HANDLING PRECAUTIONS.

IF TAKEN INTERNALLY DO NOT INDUCE VOMITING SEEK IMMEDIATE MEDICAL ATTENTION.

IF FUEL CONTACTS THE EYES, FLUSH THE EYES WITH COLD WATER OR EYEWASH SOLUTION AND SEEK MEDICAL ATTENTION.

WASH HANDS THOROUGHLY AFTER HANDLING, AS PROLONGED CONTACT MAY CAUSE IRRITATION. SHOULD IRRITATION DEVELOP, SEEK MEDICAL ATTENTION.

WHEN RELIEVING COOLING SYSTEM PRESSURE, COVER THE EXPANSION TANK CAP WITH A THICK CLOTH TO PREVENT THE POSSIBILITY OF SCALDING. Turn the expansion cap counterclockwise a quarter turn to relieve the cooling system pressure, re-tighten cap.

DISCONNECT THE BATTERY GROUND CABLE.

FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

NOTE: Very important: Before attempting to remove the intake manifold, assure yourself that nothing can fall into the lower intake, some intake valves will be open and things can fall into the cylinder which will be hard to get out. After removing the intake manifold, use a flash-light to assure yourself that nothing has fallen in, plug each intake hole tightly with a piece of cloth. After cleaning the intake gasket surfaces use a vacuum cleaner to suck away remaining debris. This procedure should also be considered when changing the spark-plugs, so, look first. Not to follow this procedure can result to serious engine damage.

NOTE!Before cranking the engine, turn the crankshaft a few turns per hand (ratchet) to assure yourself that the engine turns free!

NOTE: Do not attempt to clean the throttle body. The Bohr and the throttle plate has a special coating applied during manufacture which should not be removed.

NOTE: When the battery cable has been disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. Have your radio security code at hand.

FILL AND BLEED THE COOLING SYSTEM.

Here's a what to do next.

photo gallery
XXXXXXXXXXXXXXXXXX
View Gallery

Here, I've modified an ultrasonic cleaner (budget type, cleaning process will take longer while lack of power) with a bypass switch for permanent and timed activities. Further, I have built myself an adjustable pulsating frequency unit out of a flasher relay. At the bottom of this page there is a circuit diagram of an electronic circuitry with an adjustable duty cycle, but first, follow the underlining instructions.

Before and After the cleaning process cap fuel input, work clean:

As shown, connect a length of hose to the injector, set the compressed air pressure to the maximum allowable fuel pressure, probably 3bar, sport vehicles 5bar.

Connect a power supply that represents the recommended injector valve voltage (first fully open than pulsate injector). Without power applied, remaining cleaner in the injector will not be dispersed.

Set already thoroughly dry flushed injector valve with power detached, compressed air pressure equivalent to fuel pressure, in a warm water bath (60-80°C) without any other substances, permissible volume of emerging bubbles per injector valve, 2 with in a 15 second period, if more, clean again or replace injector. When thoroughly cleaned and with the test achieved, install immediately (corrosion), run engine, visually check injector system for leaks.

Injector valves can only be cleaned when they are open, either through a permanent or a pulsed voltage supply. A Pulsated voltage results in a pump and flush activity that flushes out loosened debris.

Injectors valves also have at their fuel entrance a fine filter, this is the last stop for debris entering the injector, should, the main fuel filter web internally bust due to the lack of maintenance or other causes, the debris stops here, filter can be replaced by using a tap to cut a short thread of 1 turn, then pull the tap with the hooked filter. These fine filters can be cleaned through the ultrasonic bath the same way as the injector nozzle, simply turn them around. Further in this video you will see the injectors in action, look at each injector squirting pattern (picture), see if there is a conical like squirting pattern for every injector nozzle channel, here we have four nozzles, so four narrow conical like squirting paths. Injectors shouldn't squirt sides ways, they should always disperse the fuel in a fine dusty way.

Remember, gasoline is always dangerous not only being very explosive but also as a health risks, for instance Benzol can be a cause of cancer, being inhaled could cause hallucinations, dizziness, aggressiveness and impaired judgment. Always keep the lot ventilated!


Here we see four injector channels, while the 3.0l V6 Jaguar engine has four valves per cylinder, 2 intake, 2 exhaust. This injector comes with a coil resistance of 12 to 16 ohms and a >10 Mega ohm coil insulation resistance.


So, here we can see the polarity, of how this injector is connected in the circuitry. This injector is tide to a supply voltage >12v and is therefore negatively triggered.

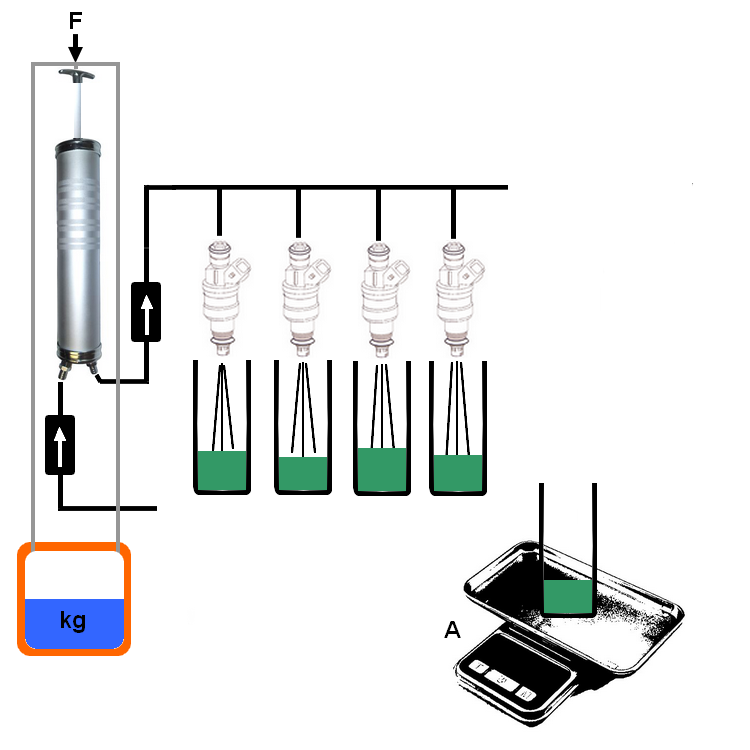

So, here is my illustration of a home brew injector testing system, on the left side there is the pressure unit, which is a hand pump with an in and outlet valve. This hand pump comes with a piston diameter of 56mm and a maximum volume of 500ml. By using the formula p=F/A calculate the needed mass (kg) for the force N (weight here is water 1l=1kg, 1kg x 9,81m/s²= 9.81kg m/s²= 9.81N (1N=1kg*m/s²)) for the wanted pressure of 3 bars. If you don't have measuring cylinders use something likewise or small gasoline resistant plastic bags, with a 200-500g weight scale with 0.01g tolerances (10euro) measure the weight of each containment, note its weight, inject fluid to a maximal level, weigh each containment again, note its weight, subtract the containment weight. The weight of all fluids should be identical +/- a percent, if not, repeat the cleaning process again and again. If the cleaning process did not deliver the desired result, there is a probability that the internal valve needle spring weakened and the valve stays open for to long.

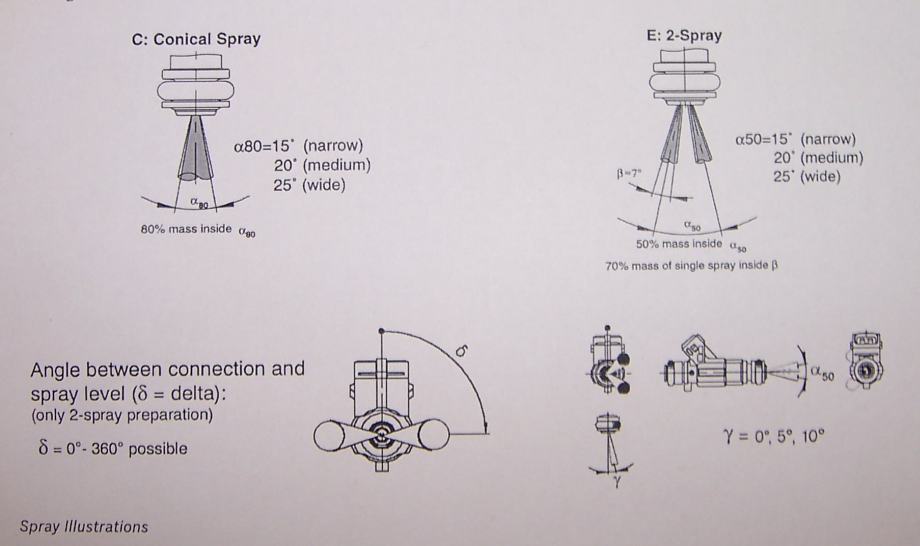

A spray pattern example.

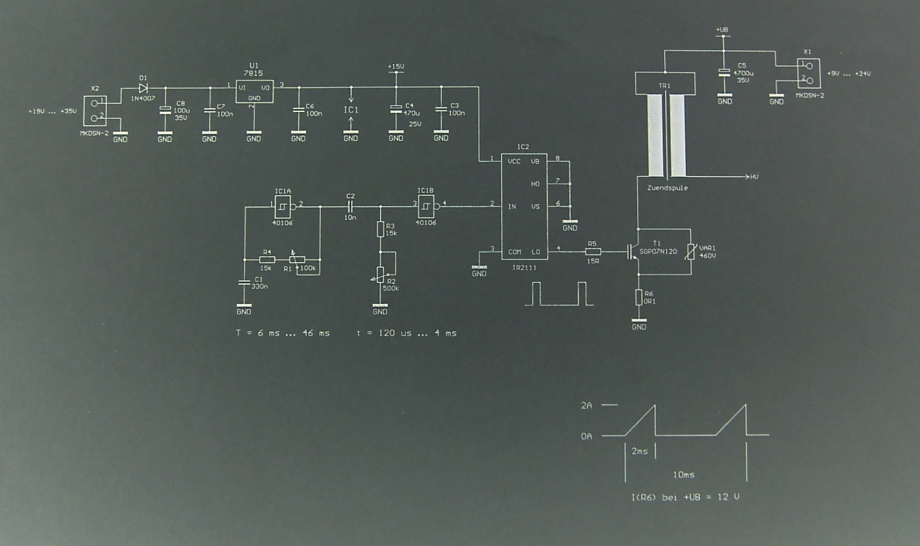

Here's an injector, ignition coil driver. With this simple and powerful driver, you can create very high voltages when driving ignition coils or drive fuel injector coils at different duty cycles. The principle work scheme of this circuitry is that it works like a switching power supply. In this case the power distributed is not redistributed back to the circuit, though, it is regulated through the change of its period and impulse duration which in this case is contain in specific parameters and therefore separately adjustable. The main point of this circuit is its output-stage amplification, particularly the power transistor (IGBT). Through the very fast depreciation (500ns) of the primary voltage, there is a high and wide inductance, not only in the secondary winding but also in its primary, which can get very high when the spark gap gets longer and longer and then destroys the IGBT (1200V). Therefore the power transistor (IGBT) has to be held in its specific parameters. Its safety circuitry, here a Varistor (VAR1) which lets the higher than allowed peak voltages (IGBT HEF40106 shut-down about 500ns, 16A permanent power, 27A maximum, 1200V high-voltage proof) starting from 800V to 1100V be bypassed to minus.
How does it work?
The circuit connector X2 is fed with a voltage of +19V to +35V. Over the linear voltage regulator U1 we get a stabilized voltage of 15 volts, which is the best working parameter for this circiut. With the use of two CMOS Schmittrigers one of which is an HEF40106 that feeds the driver.
The first stage (IC1A) is a astable multivibrator which produces a periodic rectangular signal with an adjustable periodic time table of about 6ms to 46ms.
The second stage is a monostable multivibrator which produces an adjustable impulse of about 120us to 4ms period.
The main purpose of using a circuit like this is to keep the impulse period on the adjusted level when the frequency changes.
Timers like the 555 series impulse duration can't be adjusted when the frequency changes.
The rectangular wave signal drives a MOSFET IR211 (IC2). The MOSFET's purpose is to bring a clear and powerful drive signal to the output IGBT SPG07N120. The IGBT drives the ignition coil, whereby the coil is connected (X1) to +9V to +24V.

Important!
Experimenting with voltages can be very dangerous, if you are not inclined with electro-technique than don't experiment with this circuit.

Now you have completed your circuit and the High-voltage tension wire (4) is gaped to ground.

Start voltage = adjusted to 20V.
Period duration T = adjusted to its maximum.
Impulse duration t = adjusted to its minimum.
Oscilloscope voltage at R6.
Set spark-gap to about 5mm.
Power voltage = 12V (set laboratory power-supply to max. 2A)
Slowly prolong the Impulse-duration and keep an eye on your Amp-meter.
With an impulse-duration of about 200us a spark should occur.

Now, by (carefully!) adjusting voltage, period, impulse duration you can get some experience of how this circuit functions.


Note of caution!
This driver is so strong, that the inner isolation of an ignition-coil can be permanently damaged, when the impulse energy is turn to high. Sparks of about 30mm (about 100KV at atmosphere) are achievable, dependent upon ignition-coil type. Most all ignition-coils die through shot-through insulation either internal or external and to a lesser extent shorted winding. When the spark encounters high, hot internal combustion pressure, the spark has to overcome a very high resistance (pressure, high combustion temperature, mixture lean or rich and some other odds) at its gap with a very high voltage at a very high speed. When the encountered resistance (spark-path ionization) is greater than the damaged insulation resistance of the ignition-coil, the very high voltage will always uses the easiest way to let part or all of its energy off, so a usable spark of about 30KV to 50KV can't be reached when the engine is under high stress. We have combustion pressures of about 10bar to 20bar. Ionizing an arc-path at atmosphere is easier then when it is in a chamber with a hot compressed fuel mixture in it. At atmosphere we need about 3.3KV/mm to ionize the spark-gap. A spark-gap in today’s modern engines can be as wide as 1mm - 2mm. So, we can say that at 10bar combustion pressure and to ionize a spark-gap of 1mm we need about 5x the voltage at atmosphere. Than the insulating material, both winding and outer casing rapidly lose their high resistance, (cold 20°C >10GOhm to 50-100MOhm at 80°C) when temperature rises. So, what do we conclude out of this? Ignition-coils should be checked at their maximum allowable working temperature (data-sheet). If one or two coils are damaged, change them all, than the customer will comeback after a while with the same problem.

Here's an ultrasonic household cleaner with a custom made injector mount. This kind of cleaner has only one ultrasonic wave producer, which is directly mounted under the round moulded cavity. This kind of unit will do the job too, though, it will need more time. All injectors have to be bound together and be placed directly over the ultra sonic unit (see clip).

Spray pattern test example on vehicle

First, this is not the correct way to check injectors, never do it! (highly flammable, explosive), though, here we have a good example of how injectors should disperse their fuel.
