Here, I've listed a precautionary measure to take, when working with the ignition system.

Info/Tip: Some modern Ignition-coils need the use of a special lever-tool to loosen the coil directly vertical from their mounted position, otherwise the coil could break, but not here.

Further, I used an OBDII scantool (Chinese ELM327 interface + Scanmaster). This millennium Jaguar model has about 120 OBD2 Power-train DTCs, that can be read, when flagged. Manufacturer DTC's concerning Body, Chasis and Network are inaccessible.

I've also purchased a JTIS DVD, you'll need one, its a must, all items were bought through yabE. Further, the Internet has a large S-type knowledge base for possible Q+A.

Use HV-tension pliers when working with a live system and Multimeter, check light.

Possible OBDII Ignition-coil DTC's (Diagnostic Trouble Code):

P0350 to P0358

Note!: Jag's manufacture DTC's will only be readable if they are OBD2 protocol compliant, this means here, they are not, no Body, Chassis, nor Network codes. Otherwise use software from Gendan Automotive Products, AutoEngenuity, professional software or readers.

Use your JTIS's DTC's Powertrain summary, note, if you have a DTC P1000 stored in the PCM's memory, do all 7 Drive-cycles as described! (drive-cycle tests not complete), after completion, readout PCM memory for possible DTC's and save, delete DTC's, repeat Drive-cycle test again. If no DTC is stored do nothing, if a DTC, go to the JTIS's wiring diagram, search for the troubled unit, check the unit's connections (corrosion, wire connector contact weakness (tighten or bypass connection, use electronic spray), wire-harness (damaged, check for short to +-, a wet-short, changes the capacitance of the wire, than water has a very high dialectical value and would change the signal at it's ends, do a frequency gen. + Scope test). With the use of a Multimeter or Scope and with the JTIS's trouble shooting documentation do a trouble check.

NOTE: Very important: Before attempting to remove the intake manifold, assure yourself that nothing can fall into the lower intake, some intake valves will be open and things can fall into the cylinder which will be hard to get out. After removing the intake manifold, use a flash-light to assure yourself that nothing has fallen in, plug each intake hole tightly with a piece of cloth. After cleaning the intake gasket surfaces use a vacuum cleaner to suck away remaining debris. This procedure should also be considered when changing the spark-plugs, so, look first. Not to follow this procedure can result to serious engine damage.

NOTE!Before cranking the engine, turn the crankshaft a few turns per hand (ratchet) to assure yourself that the engine turns free!

NOTE: When the battery cable has been disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. Have your radio security code at hand.

Tip: My tip, don't do any cleaning with water on electrical components (seals get bad), use a piece of cloth instead. Car engine compartments or other sensitive areas shouldn't be cleaned with high-pressure cleaners. This type of cleaning, presses water into places were it shouldn't be, for instance, in wheel bearings, between wheel-hub and brake disk (rust pressing your brake disk that it wobbles), in spark-plug wells (misfires), in sealed electrical connectors, in wiring harnesses (older ones that are cracky) were it can hardly escape, therefore causing micro-amp shorts that set malfunction indicators (MIL, PCM, ABS, ...), start electro-corrosion, unusual behaviour of electric components.

Here's a what to do next.

photo gallery
XXXXXXXXXXXXXXXXXX
View Gallery

No video yet!

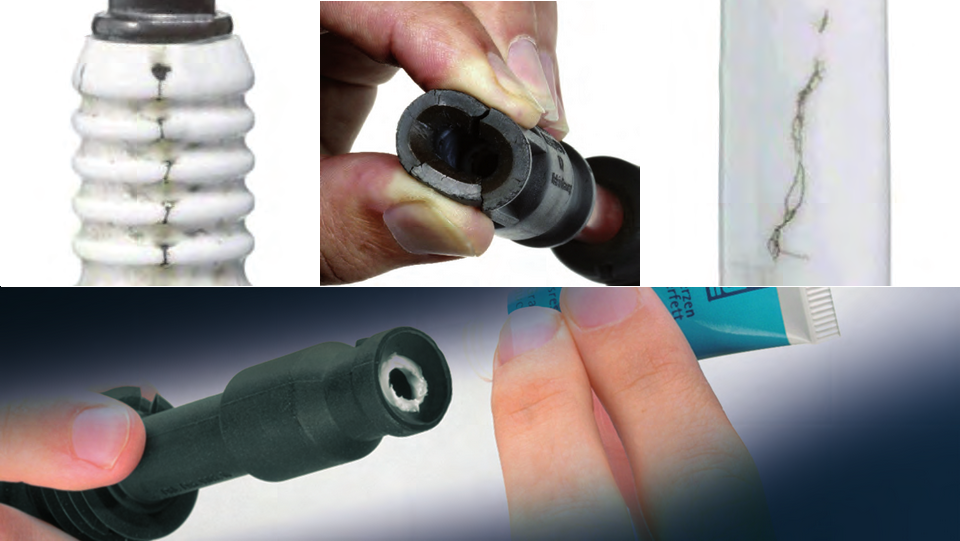

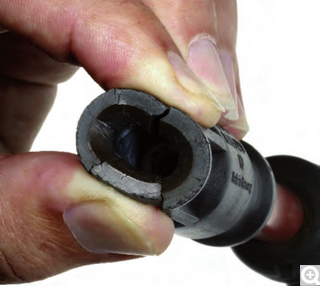

Here's one of the big problems, a fried to the spark-plug, riped apart, cracky, hardened booty that can't insulate anymore. Though, under normal driving conditions an HV at about 15KV a boot like this one could still work, but an engine in extreme acceleration or in stress mode, where the HV can reach 40KV, the HV will definitely take this way to unload itself. Tip, install new boots, use a little bit of spark-plug grease to lubricate, stop the boot from frying itself to the spark-plug ceramic and further insulating the gape between the boot and the ceramic insulator of the spark-plug against a creeping HV.

Spark-plug: For (2000) Jaguar s-type V6
Use a recommended spark-plug with a long changing interval. Check that the new spark-plug fits snuggly into the ignition-coil connections (boot, HV connector). Check if the new spark-plug hasn't been damaged, especially bent electrodes (don't let them fall!). Use a light coat of recommended lubricant HT nickel anti-seize F6AZ-9L494-AA (ESE-M12A4-A) for the spark-plug thread, if your not using this specification you could be changing the spark-plug's heat dissipation value (insulating the spark-plug) to the cylinder head and causing the spark-plug to overheat (preignition of the fuel-mixture, overheating the piston top (melt through)) and therefor cause engine damage. Tighten spark-plugs to recommended torque 15Nm. (Tightening them freehand with more than 50Nm will tear them off!)


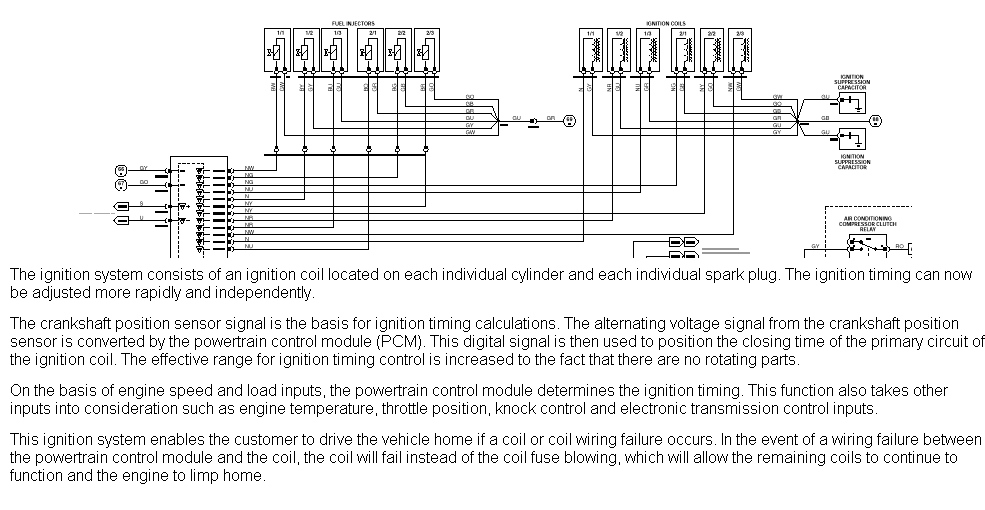

The ignition-coil's Pin 2 is tide to the supply voltage >12v and Pin 1 is therefore negatively triggered through the PCM. To check if each coil gets its trigger (ground-signal), use a test-lamp across its terminals and crack engine, test-lamp should go on and off, before doing this however, you should depressurize your fuel system and have let your engine run dry thoroughly! Cover the manifold intakes and don't let anything fall inside! First check if all coils have their deserved voltage supply, +10.5V or more and that their resistances lay in their parameters, then do the above. These coils have a very low primary resistance, so, they'll suck a lot of power for a few milli-seconds. (10-20amps). If there is no pulsation (test-lamp doesn't glow at all), check the cable and cable harness connections (corrosion (voltage drop), open circuit) to the PCM. If the test-lamp always glows, pin 1 is being grounded, shorted to the chassis or the PCM's ignition transistors have a short. All coil tests should show the same illumination, if not, we have a voltage drop somewhere in the lines, plus cable to pin 2 or minus pin 1 to the PCM. The best way to check a cabel harness and its connections is through a voltage drop test. I'am going to explain that hier, may be somewhere else.


Note of caution again!

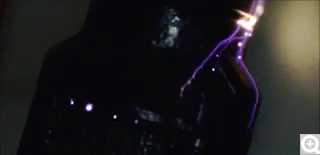

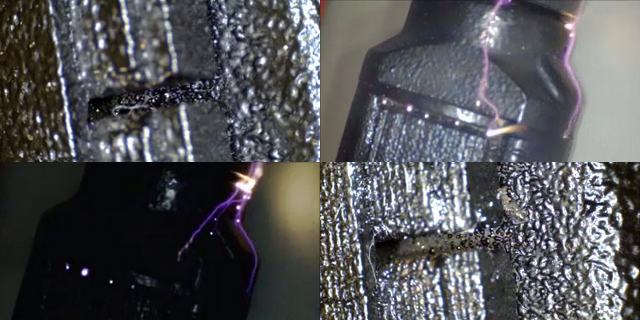

If you are using the ignition-coil and injector driver, the out going signal can be very strong, so, that the inner isolation of an ignition-coil can be permanently damaged, when the impuls energy is turn to high. Sparks of about 30mm (about 40KV at atmosphere) are achievable, depends upon what kind of ignition-coil is used. Most all ignition-coils die through shot-through insulation either internal or external (atmosphere leaks through), to a lesser extent shorted windings. When the spark encounters high, hot internal combustion pressure, the spark has to overcome a very high resistance (pressure, high combustion temperature, mixture lean or rich and some other odds) at its gap with a very high voltage at a very high speed. When the encountered resistance is higher than the insulation resistance of a damaged ignition-coil, the very high voltage always uses the easiest way to let part or all of its energy off, so a usable spark of about 30KV to 50KV can't be reached when the engine is under high stress. We have combustion pressures of about 10bar to 20bar. Ionizing an arc-path at atmosphere is easier then when it is in a chamber with a hot compressed fuel mixture in it. At atmosphere we need about 3.3KV/mm to ionize the spark-gap. A sparkgap in todays modern engines can be as wide as 1mm - 2mm. So, we can say that at 10bar combustion pressure and to ionize a spark-gap of 1mm we need about 5x the voltage at atmosphere which is 16.5KV. Than the insulating material, both windings and outer casing rapidly lose their high resistance, (cold 20°C >10GOhm to 50-100MOhm at 80°C) when temperature rises. So, what do we conclude out of this? Ignition-coils should be checked at their maximum allowable working temperature (data-sheet).

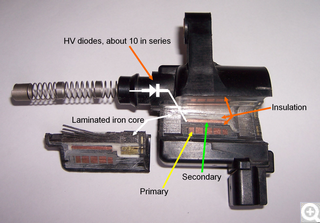

Here's my ignition-coil (EEE03A, XW4U-12A366-AC)
Primary: 0.5 - 1ohm
Secondary: Resistance not measurable due to HV diodes, though, HV diodes can be tested (blocking direction test), adjust your multimeter to +20V, connect multimeter com lead to your car battery minus, connect multimeter plus lead to ignition-coil spark-plug connector and one of the primary connections to battery plus. Multimeter should read no voltage. If you have a voltage indication, the diode has a short circuit.

Reverse the connections on the ignition-coil (foreword direction test), a battery voltage of (minus X multiples of forward voltage drop) should readable. If not the circuit is open (diode or winding)

A short tutorial: When the ignition-spark encounters high, hot internal combustion pressure, the spark has to overcome a very high resistance (pressure, high combustion temperature, mixture lean or rich and some other odds too) at its gap with a very high voltage at a very high speed, charge and discharge about 5ms. When the encountered resistance (ionization-path) is higher than the insulation resistance of a damaged ignition-coil (atmosphere leaks through the old cracky damaged resin insulation of the secondary wire or wet and damp sparkplug holes), the very high voltage will always use the easiest way to unload part or all of its energy, so a usable spark of about 30KV to 40KV can't be reached when the engine is under high stress. We have combustion pressures of about 10bar to 20bar. Ionizing an arc-path at atmosphere is easier as when it is in a chamber with a hot compressed fuel mixture in it. At atmosphere we need about 3.3KV/mm to ionize the spark-gap. A sparkgap in todays modern engines can be as wide as 1mm - 2mm. So, we can say that at 10bar combustion pressure and to ionize a spark-gap of 1mm we need about 5x the voltage at atmosphere which is 16.5KV. Than the insulating material, both windings and outer casing rapidly lose their high resistance, (cold 20°C >10GOhm to 50-100MOhm at 80°C) when temperature rises. So, what do we conclude out of this? Ignition-coils should be checked at their maximum allowable working temperature (data-sheet).
